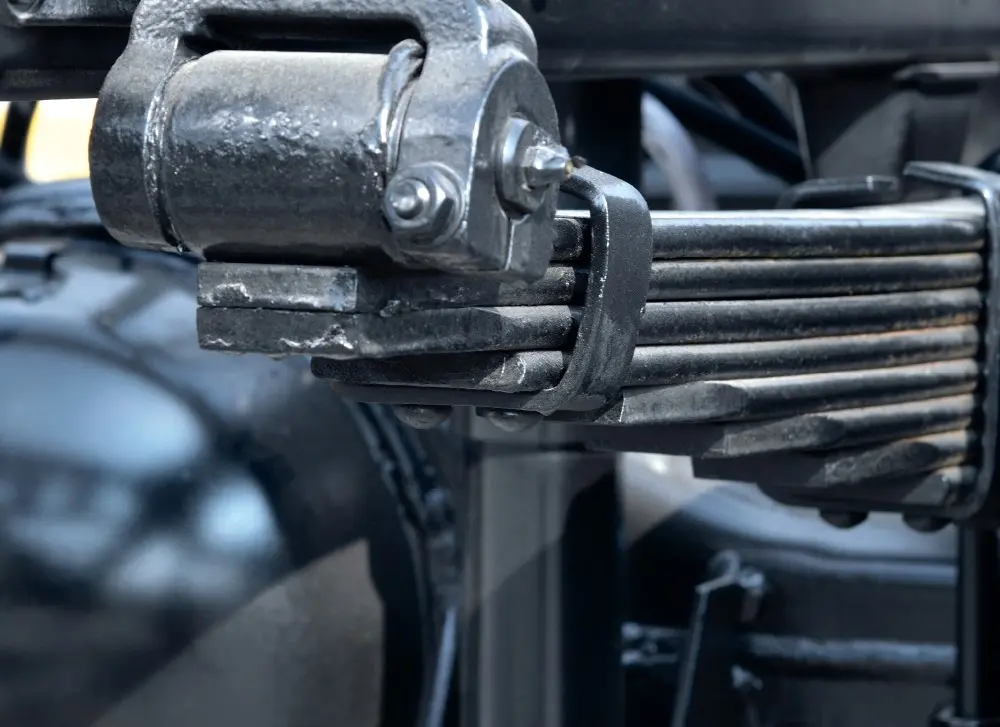

Style meets safety in the 2050 C Chassis school bus. This 2350 mm wide bus body has eye-catching aesthetics and comes loaded with features like silent & grease-free parabolic suspension and radial tubeless tires. With cutting-edge E474 engine at its heart to provide unmatched performance, it delivers best-in-class fuel efficiency and lower maintenance cost, leading to high profitability.
| SPECIFICATIONS | 2050 C |
|---|---|
| Wheelbase | 2850 mm |
| Overall Length | 5375 mm |
| Overall Width | 2043 mm |
| Overall Height | 2480 mm |
| Ground Clearance | 183 mm |
| Front Overhang | 1000 mm |
| Rear Overhang | 1525 mm |
| Turning Circle Diameter | 11.2 m |
| Engine Make | E366 |
| Displacement (cc) | 1999 |
| Power | 75 kW @ 3200 Rpm |
| Torque | 285 Nm @ 1250-2500 Rpm |
| Clutch | 280 mm |
| Transmission Make | ET30S5 |
| Transmission Type | Synchromesh ( 5 SPeed+1Rev) |
| GVW | 5.6 t |

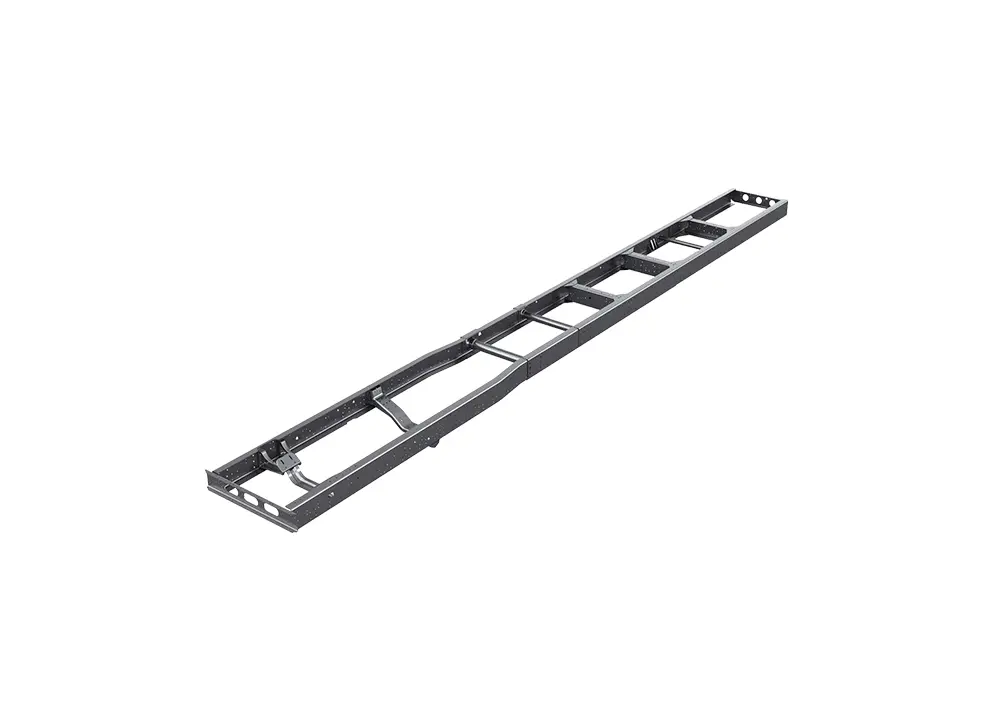

| Chassis Type | BSK 46 |
| Chassis dimension | 180X60X5 mm |
| Fuel Tank Capacity | 60 litres |
| Brakes | Hydraulic with Disc |
| Tyres | 7.50 X 16 -16 PR |
| Suspension Front | Semi elliptic with ARB |
| Suspension Rear | Semi elliptic with ARB |
| Steering | Power steering |
| Battery | 12V, 130Ah |
| Alternator | 110A |
| DEF Tank Capacity | 19 litres |
