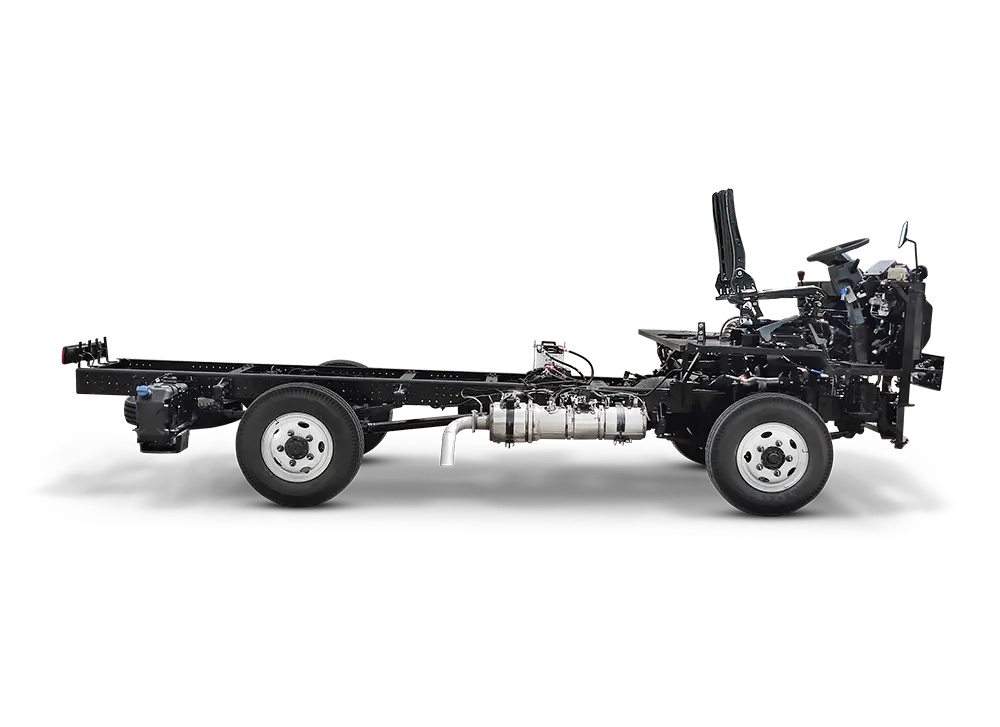

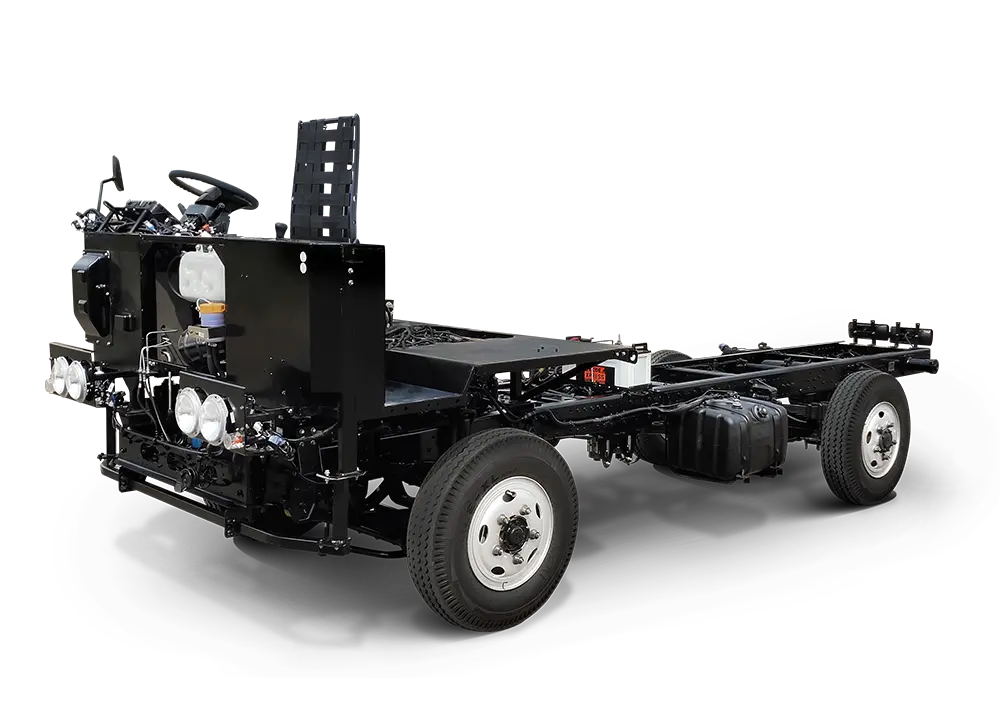

The all-new 2000 series chassis is designed to deliver best in class operating economics and superior on road performance, coupled with a lower maintenance costs leading to high profitability for its owners. Powered by advanced new E366 engine, Eicher chassis is smartly designed to deliver powerful performance without compromising on fuel efficiency.
| SPECIFICATIONS | 2050 D |
|---|---|
| Wheelbase | 3100 mm |
| Overall Length | 5625 mm |
| Overall Width | 2043 mm |
| Overall Height | 2480 mm |
| Ground Clearance | 183 mm |
| Front Overhang | 1000 mm |
| Rear Overhang | 1525 mm |
| Turning Circle Diameter | 12.2 m |
| Engine Make | E366 |
| Displacement (cc) | 1999 |
| Power | 75 kW @ 3200 Rpm |
| Torque | 285 Nm @ 1250-2500 Rpm |
| Clutch | 280 mm |
| Transmission Make | ET30S5 |
| Transmission Type | Synchromesh ( 5 SPeed+1Rev) |
| GVW | 5.6 t |
| Chassis Type | BSK 46 |

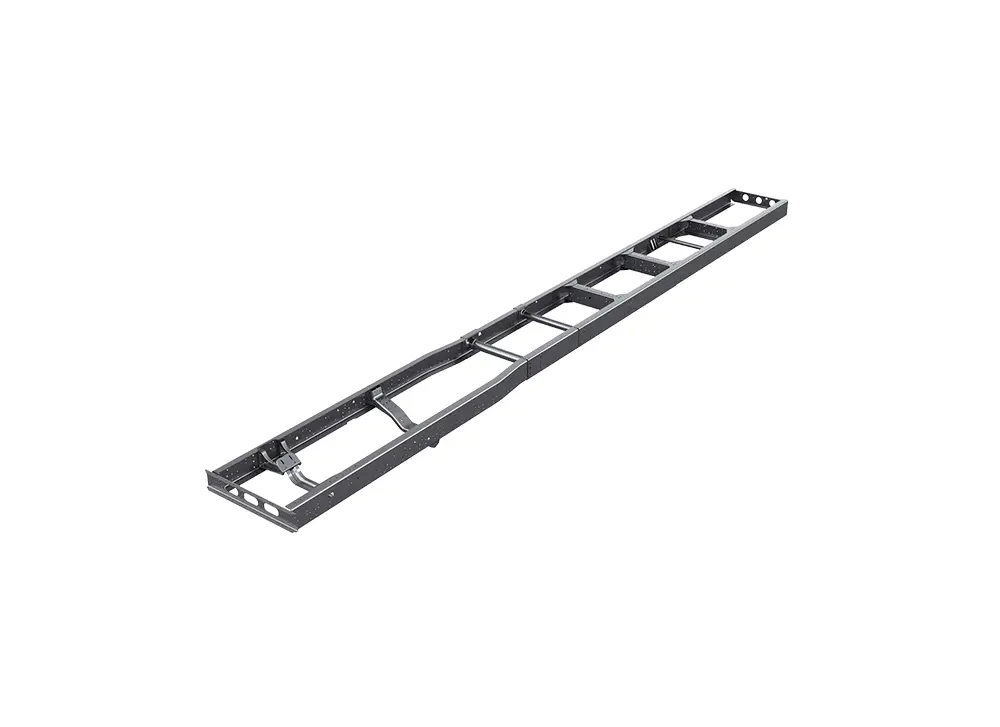

| Chassis dimension | 180X60X5 mm |
| Fuel Tank Capacity | 60 litres |
| Brakes | Hydraulic with Disc |
| Tyres | 7.50 X 16 -16 PR |

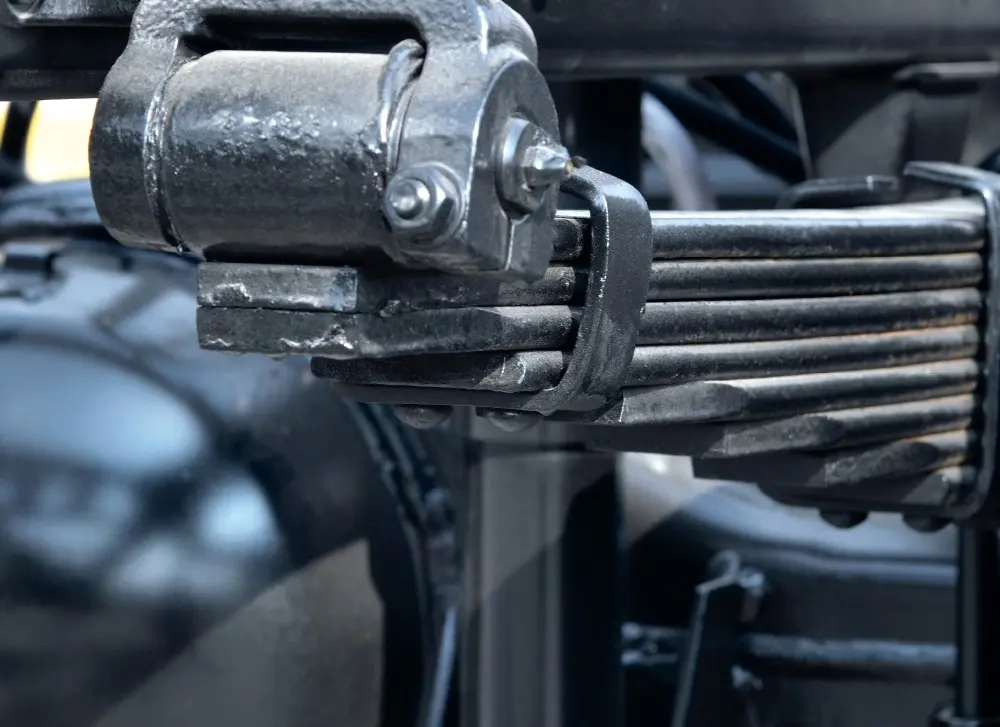

| Suspension Front | Semi elliptic with ARB |
| Suspension Rear | Semi elliptic with ARB |
| Steering | Power steering |
| Battery | 12V, 130Ah |
| Alternator | 2 X 110A |
| DEF Tank Capacity | 19 litres |
