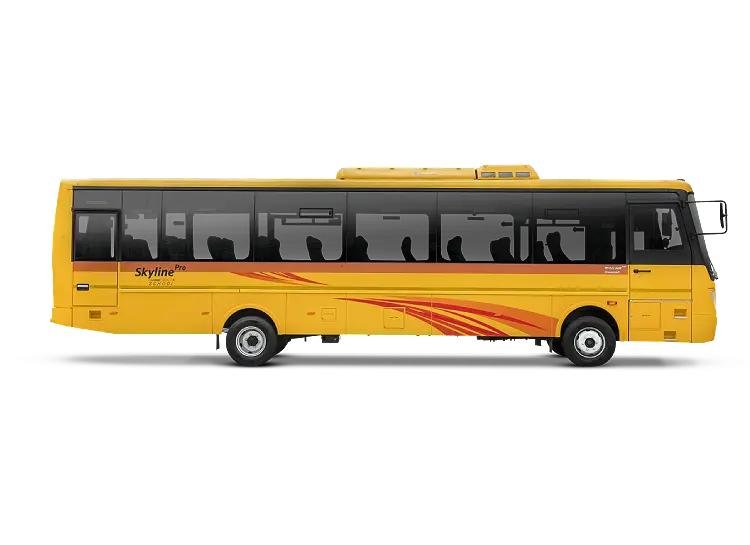

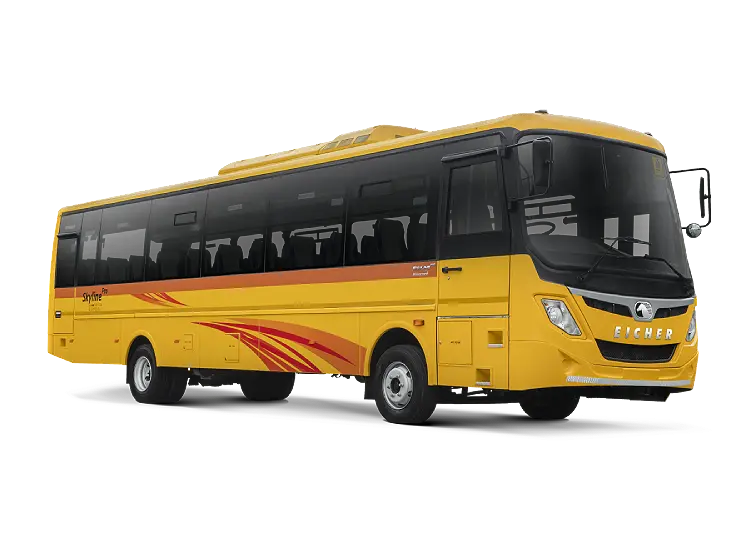

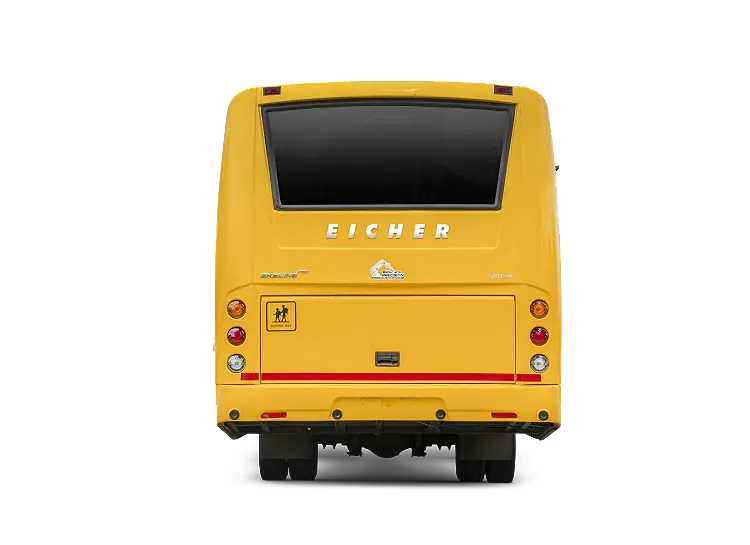

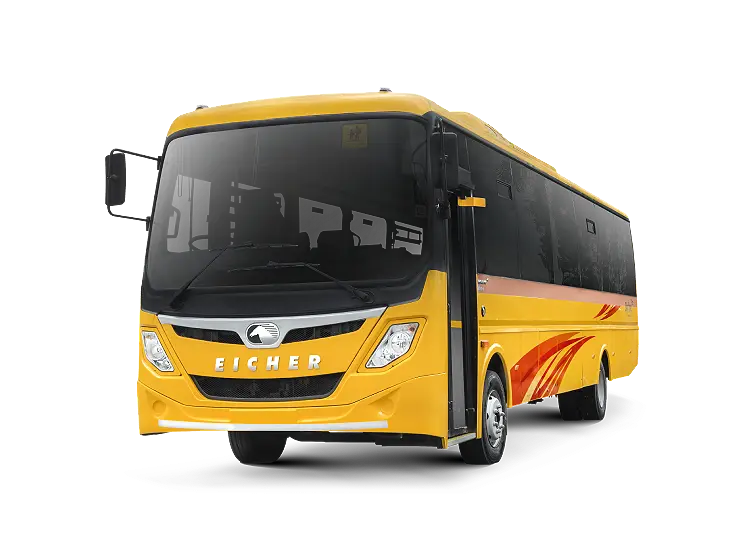

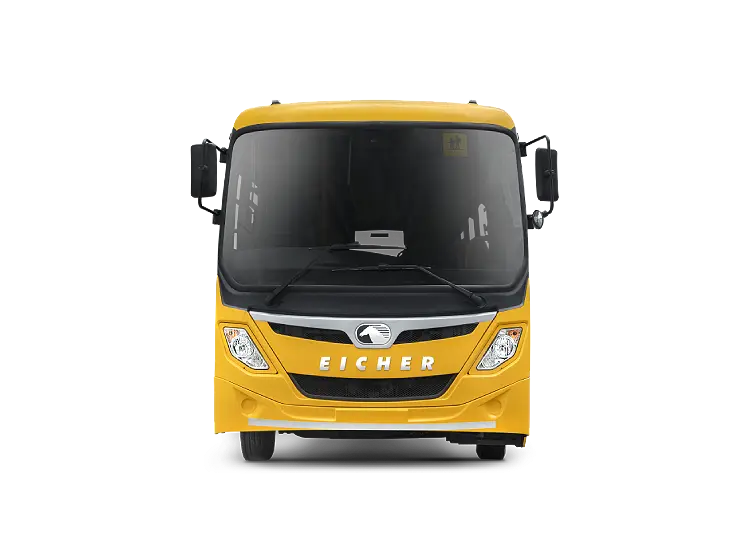

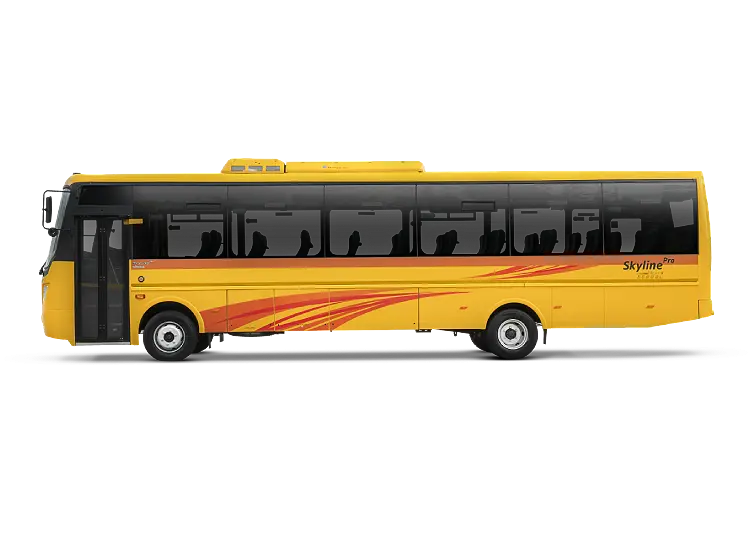

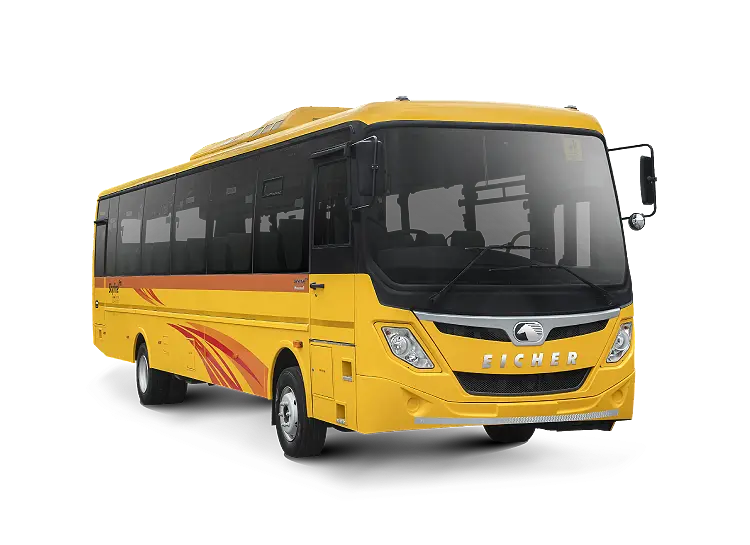

The new Skyline Pro School 3011 L is designed to provide class leading performance with better comfort and dynamic seating options. The premium 3011 School bus is built on the reliable 3000 series platform. It offers a wider bus body that improves interior ambient space, wide gangway and comfortable seats that give a definite edge and new level of comfort to our wider Skyline Pro.
| SPECIFICATIONS | Skyline Pro 3011 L School |
|---|---|
| Seating Capacity High headrest seats (HHR) | 72+D (3X3) |
| Wheelbase (mm) | 5260 |
| Overall Length (mm) | 10439 |
| Overall Width (mm) | 2590 |
| Overall Height (mm) | 2956 |
| Ground Clearance (mm) | 185 |
| Front Overhang (mm) | 2045 |
| Rear Overhang (mm) | 3134 |
| Turning Circle Diameter (m) | 18.5 |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 140 hp (105 kW) @ 3200 Rpm |
| Torque | 400 Nm @ 1200 - 2500 Rpm |
| Clutch (mm) | 310 |
| Transmission Make | ET40S5 |
| Transmission Type | Synchromesh 5Speed + 1Rev |
| GVW (Tonnes) | 11.8 |
| Chassis Type | Domex® 650 |
| Chassis dimension (mm) | 210 X 76 X 6 |
| Fuel tank Capacity (L) | 160 |
| Brakes | Air Brakes - Drum with APDA |
| Tyres | 235/75 R17.5 - 14PR (Tubeless) |
| Suspension Front | Parabolic With Anti-roll bar(ARB) |
| Suspension Rear | Parabolic |
| Steering | Power steering | Tilt & Telescopic |
| Battery | 12V 130 Ah |
| Alternator | 110 A |
| Flooring | Silicon embeded Vinyl |
| Ad Blue Tank Capacity (l) | 19 |
