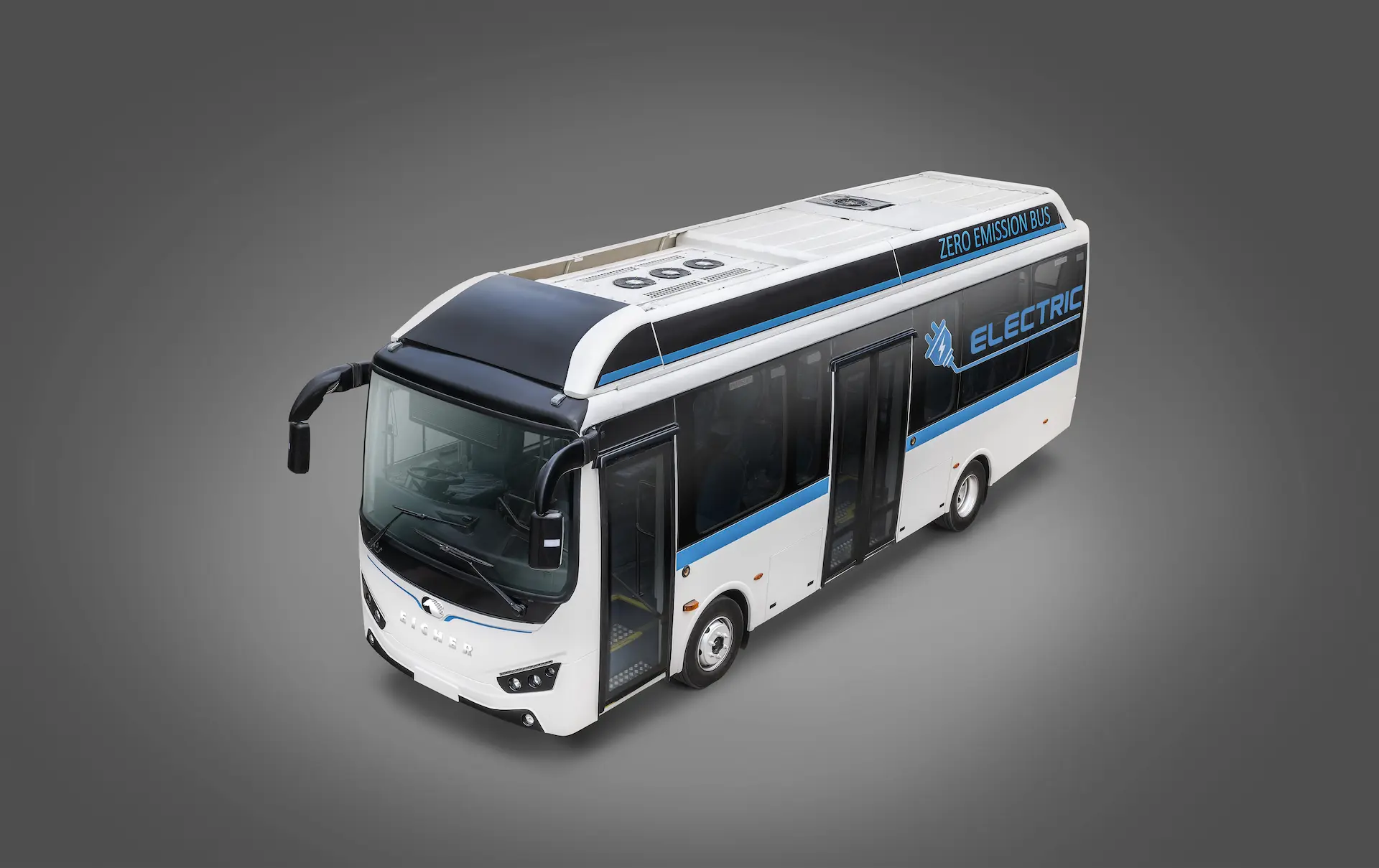

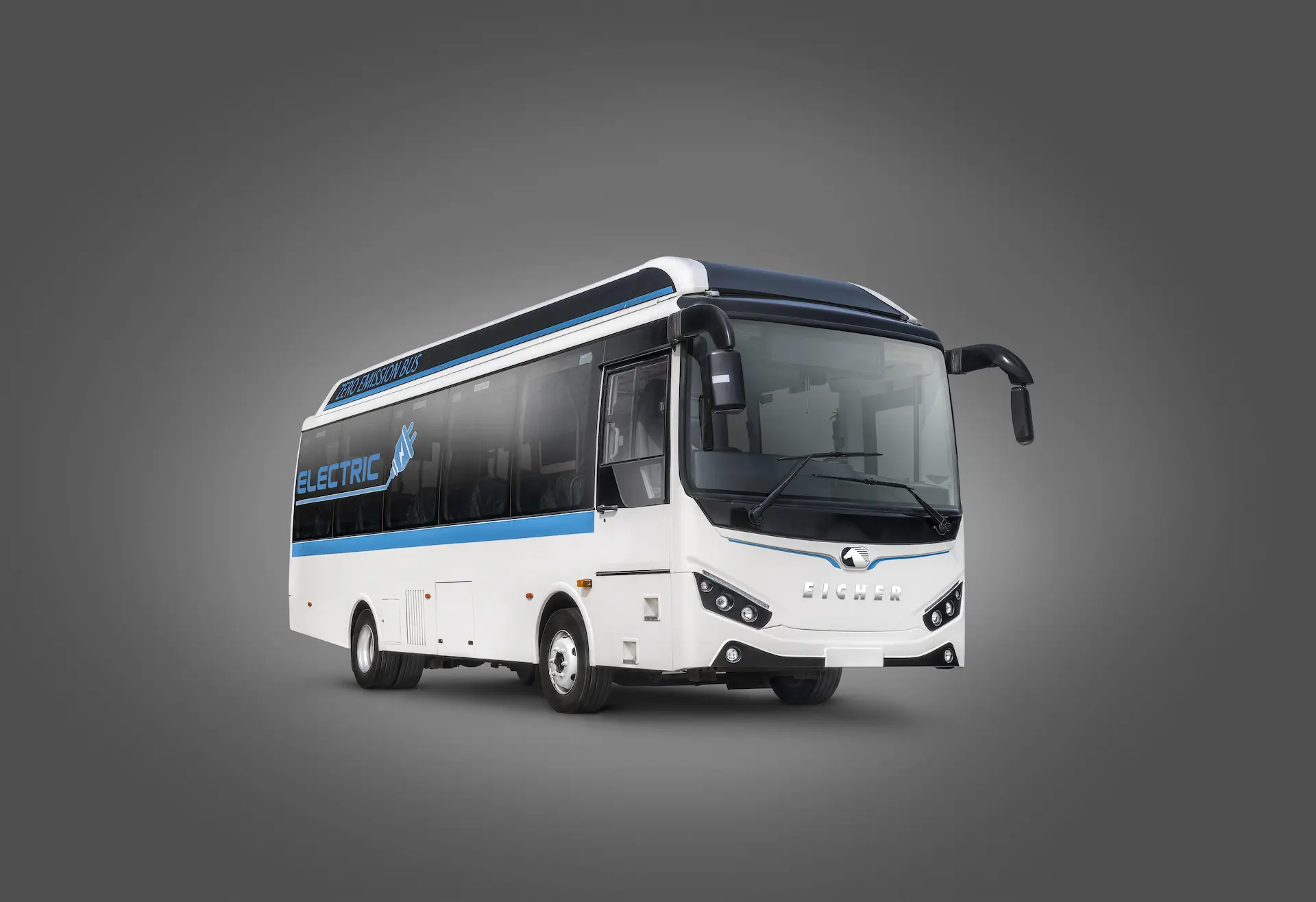

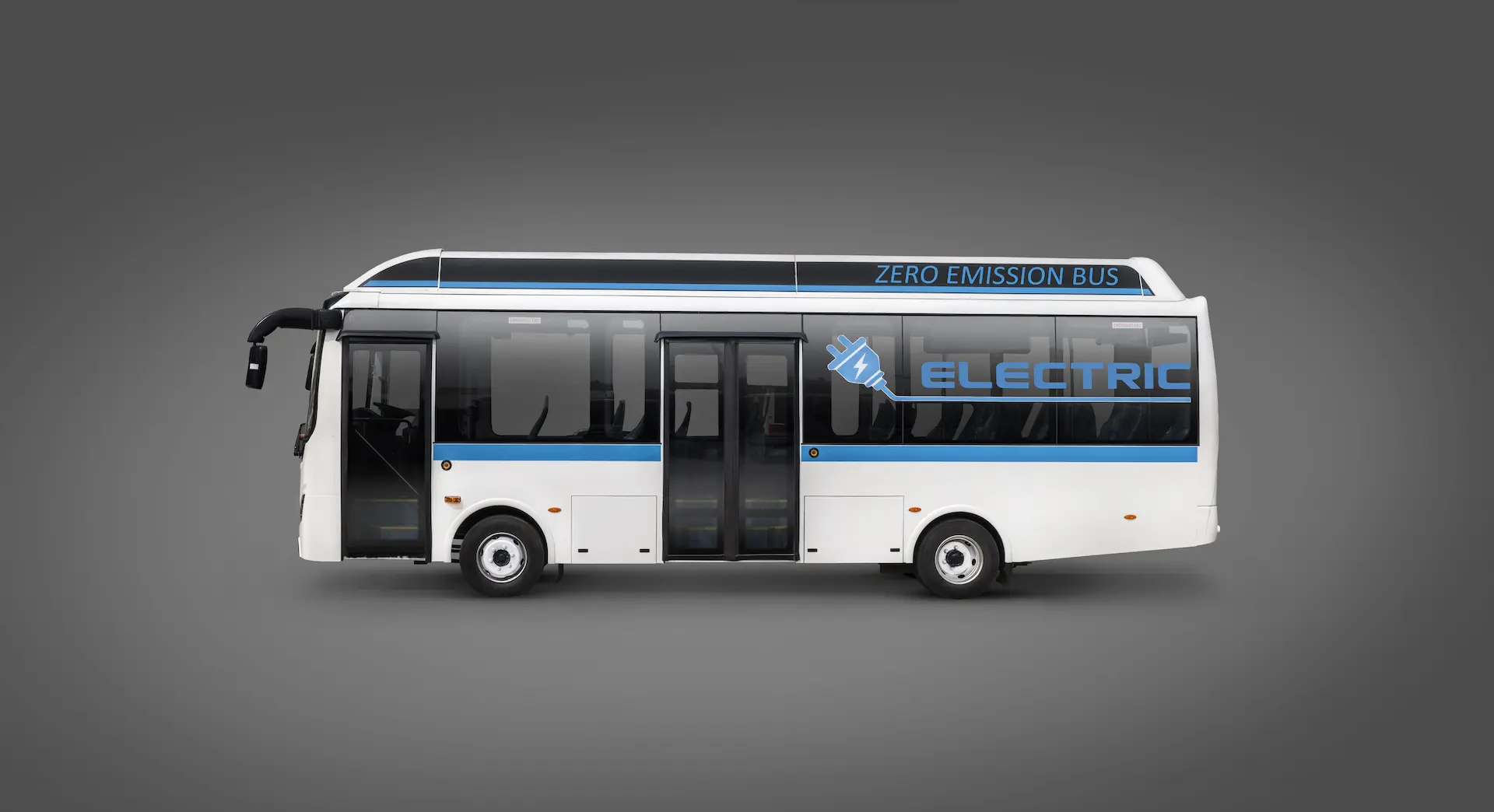

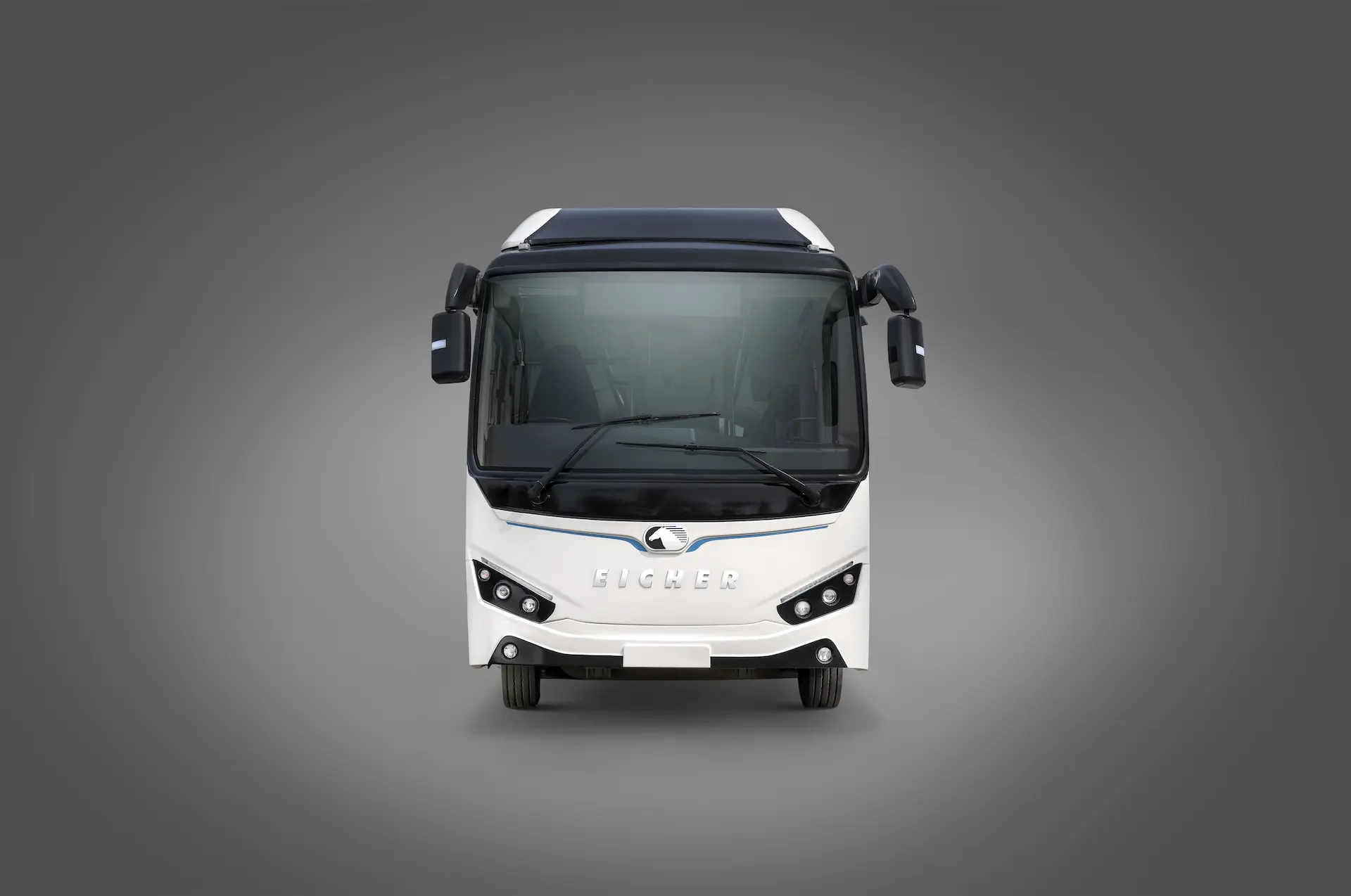

Step into the future of public mobility with the new Skyline Pro-E 9m electric bus. It's an efficient and dynamic innovation ready to redefine and electrify urban mobility. Powered by Eicher's cutting-edge EV technology, it boasts integrated high-energy storing batteries and a reliable all-electric driveline. Experience the next generation of efficient, clean, and silent public transport with unmatched safety and comfort features.
| SPECIFICATIONS | Skyline Pro-E 9m |
|---|---|
| Seating Capacity | 32+D |
| Wheelbase (mm) | 4320 |
| Overall Length (mm) | 9005 |
| Overall Width (mm) | 2350 |
| Overall Height (mm) | 3370 |
| Ground Clearance (mm) | 189 |
| Floor Height (mm) | 900 |
| Turning Circle Diameter (m) | 16 |
| Battery Capacity (kWh) | Upto 204 |
| Battery | Li-ion |
| Battery Pack Protection Level | IP 67 |
| Cooling system | Active Cooling |
| Air conditioning | As Per UBS ll |
| Max Power (kW) | 235 |
| Max Torque (Nm) | 3250 |
| Max Speed (kmph) | 75 |
| Acceleration 0-30 (kmph) | <10.5 sec |
| Gradeability | 17% as per UBS II |
| Range (km) | Upto 300 (under standard condition) |
| Transmission Type | Automatic |
| Electrical regeneration | Yes |
| GVW (Tonnes) | 12.8 |
| Lightening Protection | Yes |
| Chassis Type | Domex® 650 |
| Brakes | Front-Disc, Rear-Drum |
| Tyres | 245/70 R17.5 |
| Suspension Front & Rear | Air Suspension |
| Steering | Power-assisted |
| Door system | Pneumatic Front-outswing, Middle-inswing |
| Flooring | Vinyl |
| Charging time | 2 to 4 hours (depending on charger capacity |
| Body Description | Meeting AIS 052 |
| FDSS | Yes |
| Short Circuit Protection | Yes |
| Over-temperature Protection | Yes |
