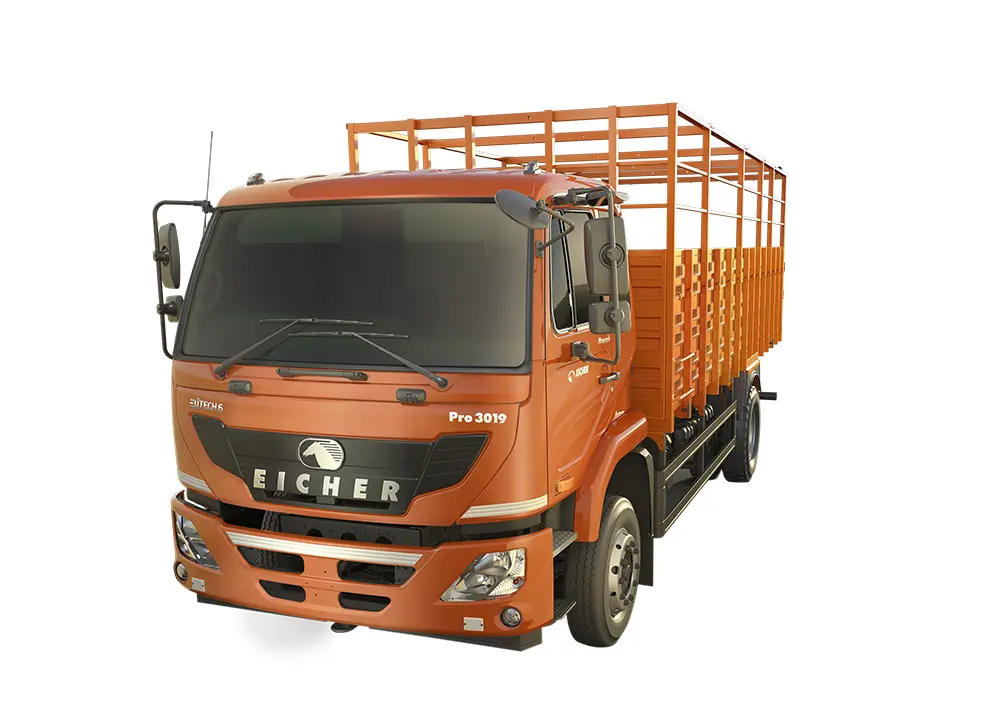

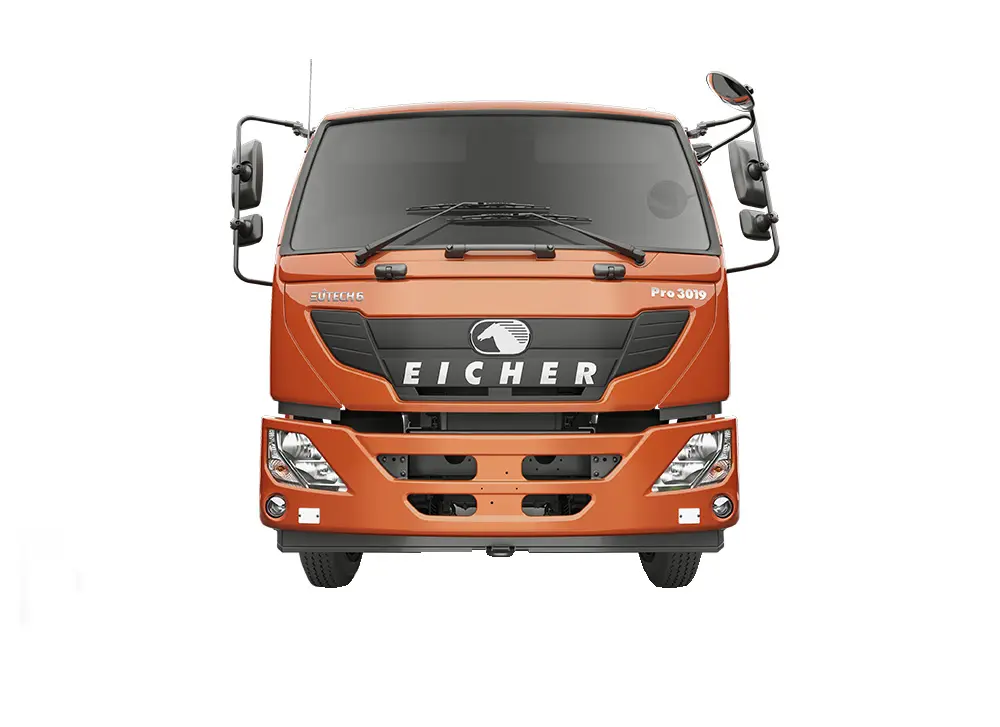

Eicher Pro 3019 exemplifies efficiency that translates into profitability for your business. As an 18.5-ton GVW Rigid Truck featuring the smart and efficient E494 engine, this vehicle is equipped with innovative features. It empowers you to achieve unmatched performance, thereby providing a significant boost to your business.
| SPECIFICATIONS | Pro 3019 | ||||||
|---|---|---|---|---|---|---|---|
| GVW | 18500 kg | ||||||
| Engine Model | E494, 4 Cylinder, BSVI | ||||||
| Max Power | 134 kW @ 2600 rpm | ||||||
| Max Torque | 600 Nm @ 1200-1800 rpm | ||||||
| Clutch Diameter | 362 mm | ||||||
| Gearbox | ET 60 S7 , Manual | ||||||
| Rear Axle | Heavy Duty fully floating single reduction, 395mm drive head | ||||||
| FDR | 5.857 | ||||||

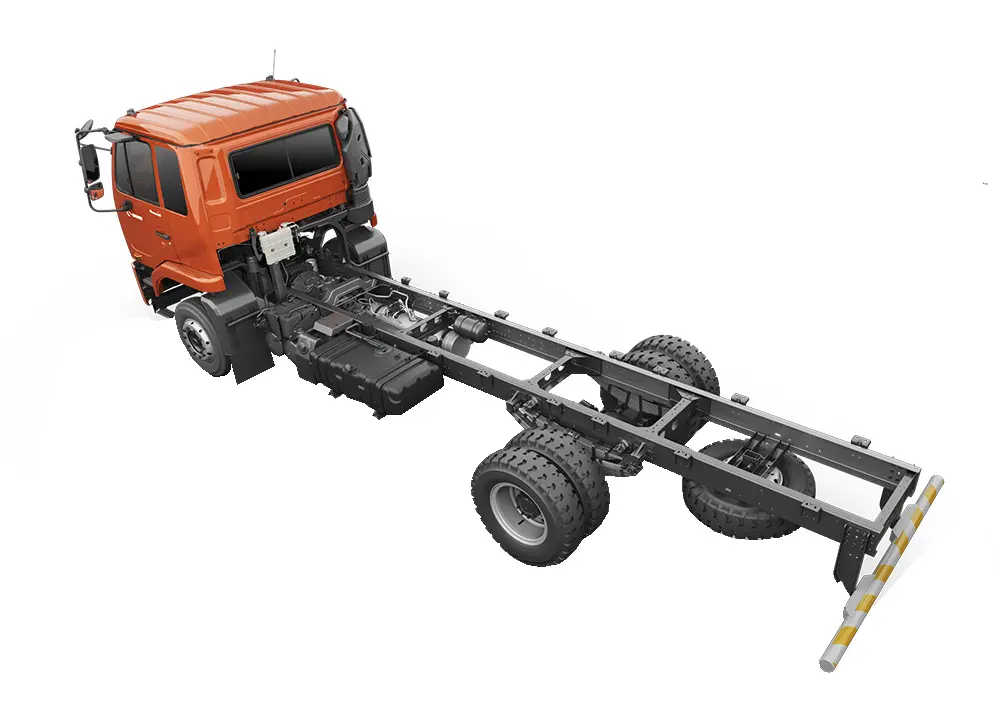

| Chassis Dimensions | 230 X 76 X 6 mm | ||||||
| Brakes | Dual circuit full air āSā Cam with ABS | ||||||
| Front Suspension | Parabolic | ||||||
| Rear Suspension | Semi Elliptic | ||||||
| Cabin | Sleeper Cabin | ||||||
| Steering | Tilt and Telescopic Power Steering | ||||||
| Tyres | Front/Rear: 295/90R20 | ||||||
| Fuel Tank | 190, 425 litres | ||||||
| Adblue Tank | 27 litres | ||||||
| Battery | 24V | ||||||
| Gradeability | 25% | ||||||
| Wheelbase , Variants & Load body span | 4490 mm | 5490 mm | 6690 mm | ||||
| CBC | HSD | CBC | HSD | MS Container | CBC | CWC | |
| 6067 | 6112 | 7295 | 7361 | 7356 | 9695 | 10213 | |
| Applications | Fruits & Vegetables, Industrial Goods, Parcel & Courier, FMCG, e-Commerce, Auto Carrier, LPG & Tankers | ||||||
| Additional Features | HVAC, Mechanical Suspended Seat, Music System, Fog lamp & Full Trim Cabin | ||||||
