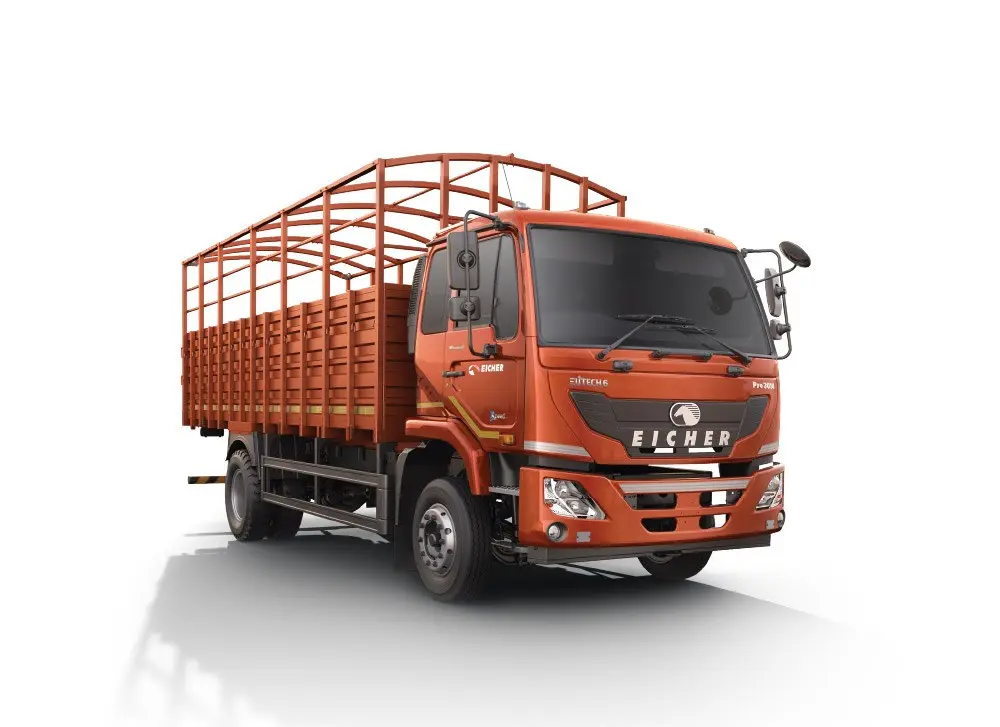

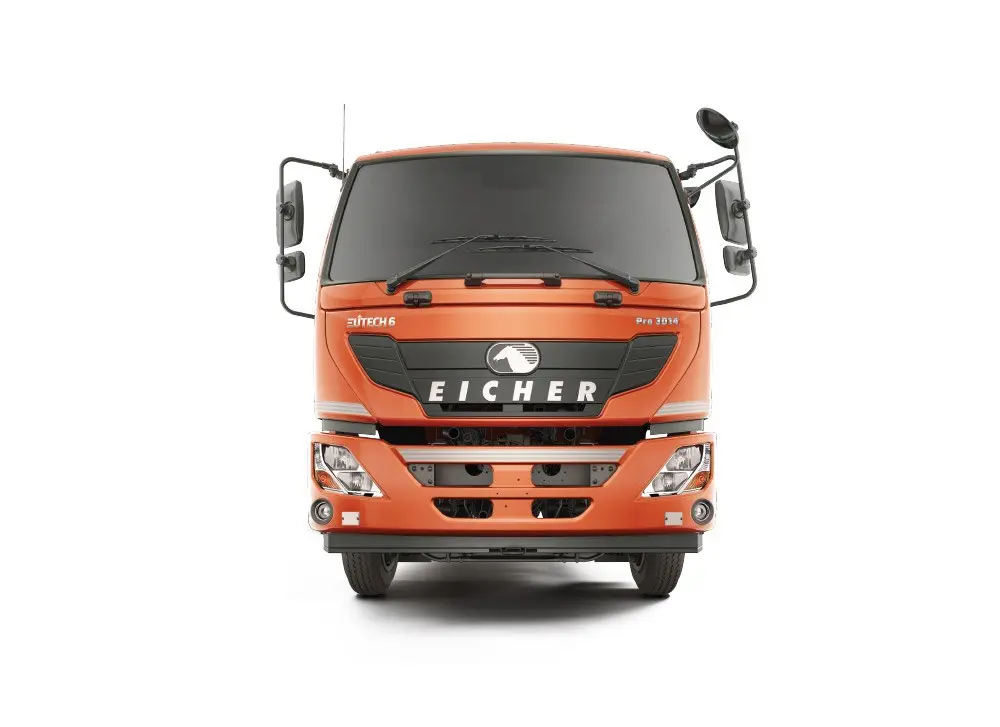

Redefining levels of performance & profitability to stay ahead in business with Eicher Pro 3014 with Next gen E494 engine & 7 speed gearbox.. Its revolutionary driver comfort, cutting edge technology, best in class safety and reliability along with superior overall performance keep you “Stay Ahead”
| Specifications | Pro 3014 | |||
|---|---|---|---|---|
| GVW | 14250 kg | |||
| Wheelbase | 4550 mm | 4550 mm | 5550 mm | 5550 mm |
| Cargo Body Length | 5808 mm | 6112 mm | 6782 mm | 7364 mm |
| Cargo Body Width | 2125 mm | 2125 mm | 2338 mm | 2338 mm |
| Engine | E494 4 Cyl 4V CRS BSVI | |||
| Max. Power Output | 120 kW/ 160hp @2600 rpm | |||
| Max. Torque Output | 500 Nm @1200-1800 rpm | |||
| Battery | 12V - 100Ah | |||
| Suspension | F - Front - Parabolic with shock absorber | |||
| R - Rear - Semi elliptical laminated leaves with helper spring | ||||
| Clutch Diameter | 330 mm | |||
| Gearbox | ET 50S7 | |||
| Brakes (Service) | Full Air brake divided line with auto slack adjuster at all wheel ends and APDA | |||
| Ground Clearance | 220 mm | |||
| Fuel Tank Capacity | 190 | 190 | 190 | 425 |
| Tyre Size | 8.25R20 - 16PR Radial Tyres | |||
| Maintenance Interval (kms) | 80000 | |||
| Steering | Hydraulic Assisted Power Steering (Tilt & Telescopic) | |||
| Gradeability (%) | 25 | |||
| Warranty** | 3 Years/ Unlimited KMs on vehicle | |||
| 4 Years/ Unlimited KMs on Engine and Gearbox | ||||
